Product Detail

Means of Transport: Ocean,

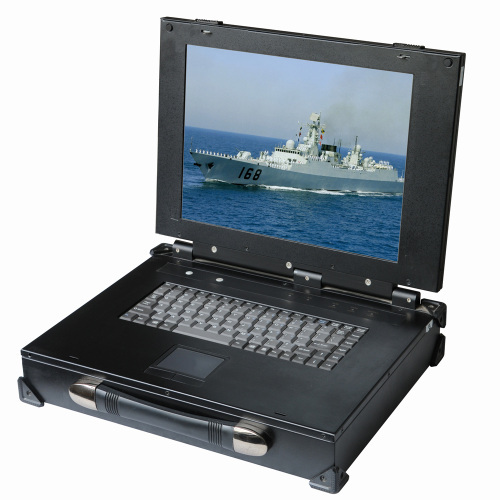

PC-2015 integrates the advantages of three kinds of notebook computers: flip-portable machine, rugged notebook and portable laptop

·2.0U High Portable integrated structure
·Having EMI / RF protection layer
·With 8-28 V DC power supply
·Hard drive has shock absorber in the chassis
·High-strength aluminum-magnesium alloy structure310mm*4000mm*88.5 mm

Environment
Work temperature       0 ~ 40℃
Storage temperature         -20 ~ 60℃(Non-condensing)
Work Humidity        10% ~ 90% Relative Humidity,Non-condensing
Vibration           5-17Hz,0.1-inch double amplitude displacement;17-640Hz,
                                                     1.56Peak-peak acceleration
Impact           10G Peak-peak acceleration, the duration is 15MS in the X, Y, Z axis.
EMC       3C/CE/FCC A

Recommended with ICA-945 Embedded Motherboard

CPU On board ATOM 1.6GHz
Chipset Intel 945GM + ICH7
Memory Standard DDRII 1GB, up to 2GB
HD 160GB shockproof
Audio interface SPK-Out\MIC-In\Line In
Network Interface 1 100/1000Mbps Ethernet Controller
I/O port 4×RS232(one supports 485/422),4×USB2.0, 1×VGA,
1×PS/2 Mouse/Keyboard interface
Power DC8-28V 5A power adapter,AC100V~265V 65Hz

LCD
Display           15"TFT LCD
Active area    304.1mm(H) ×228.1mm(V)
Best Resolution   1024×768 @85Hz
Colors 16.7M
Pitch              0.297mmX0.297mm
Brightness           150-250cd/m
Viewing angle         150°(H),145°(V)
Dimming          OSD control
Backlight MTBF 30000hrs

Ordering information
PC-2015 15"LCD,w/2U height chassis,w/CPU:Intel ATOM 1.6GHz,w/RAM:1G,w/HDD:160G

If you want to know more details on OEM,welcome to contact us
